型號 Type | 極性 | PCN (mw) | lc (mA) | BVCBO (V) | BVCEO (V) | BVEBO (V) | hFE | VCE(Sat) | Ft (MHZ) | 印記 Marking | |||||
| Min | Max | Vce(v) | lc(mA) | (V) | lc(mA) | lB(mA) | |||||||||
S9011 | NPN | 200 | 200 | 30 | 20 | 4 | 70 | 200 | 5 | 1 | 0.3 | 10 | 1 | 150 | 1T |
| S9012 | PNP | 300 | 300 | 40 | 25 | 5 | 120 | 350 | 1 | 50 | 0.6 | 500 | 50 | 150 | 2T1 |
| S9013 | NPN | 300 | 300 | 40 | 25 | 5 | 120 | 350 | 1 | 50 | 0.6 | 500 | 50 | 150 | J3 |
| S9014 | NPN | 200 | 200 | 50 | 45 | 5 | 200 | 1000 | 5 | 1 | 0.3 | 100 | 5 | 150 | J6 |
| S9015 | PNP | 200 | 200 | 50 | 45 | 5 | 200 | 1000 | 5 | 1 | 0.3 | 100 | 10 | 150 | M6 |
| S8050 | NPN | 300 | 500 | 40 | 25 | 5 | 120 | 350 | 1 | 50 | 0.6 | 500 | 50 | 150 | J3Y |
| S8550 | PNP | 300 | 300 | 40 | 25 | 5 | 120 | 350 | 1 | 50 | 0.6 | 500 | 50 | 150 | 2TY |
| S9018 | NPN | 200 | 200 | 25 | 18 | 4 | 70 | 190 | 5 | 1 | 0.5 | 10 | 1 | 600 | J8 |
| SS8050 | PNP | 300 | 300 | 40 | 25 | 5 | 120 | 350 | 1 | 100 | 0.5 | 800 | 80 | 100 | Y1 |
| SS8550 | PNP | 300 | 300 | 40 | 25 | 5 | 120 | 350 | 1 | 100 | 0.5 | 800 | 80 | 100 | Y2 |
| A1015 | PNP | 200 | 150 | 50 | 50 | 5 | 130 | 400 | 6 | 2 | 0.3 | 100 | 10 | 80 | BA |
| C945 | NPN | 500 | 150 | 50 | 50 | 5 | 30 | 400 | 6 | 1 | 0.3 | 100 | 10 | 150 | CR |
| A733 | PNP | 200 | 150 | 60 | 50 | 5 | 120 | 475 | 6 | 1 | 0.3 | 100 | 10 | 60 | CS |
| MMBTA42 | NPN | 300 | 300 | 300 | 300 | 5 | 100 | 200 | 10 | 10 | 0.2 | 20 | 2 | 50 | 1D |
| MMBTA92 | PNP | 300 | 300 | 300 | 300 | 5 | 100 | 200 | 10 | 10 | 0.2 | 20 | 2 | 50 | 2D |
| MMBT3904 | NPN | 200 | 200 | 60 | 40 | 6 | 100 | 300 | 10 | 1 | 0.3 | 50 | 5 | 250 | 1AM |
| MMBT3906 | PNP | 200 | 200 | 60 | 40 | 5 | 100 | 300 | 10 | 1 | 0.3 | 50 | 5 | 250 | 2A |
| MMBT4401 | NPN | 300 | 600 | 60 | 40 | 6 | 100 | 300 | 1 | 150 | 0.4 | 150 | 15 | 250 | 2X |
| MMBT4403 | PNP | 300 | 600 | 40 | 40 | 5 | 100 | 300 | 2 | 150 | 0.4 | 150 | 15 | 200 | 2T |

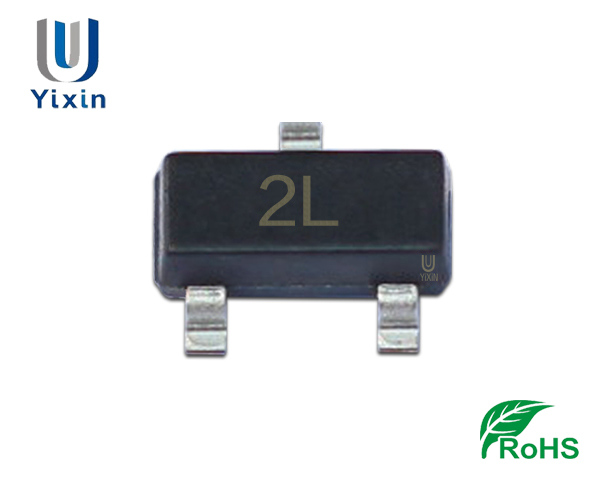

| MMBT5401 | PNP | 300 | 600 | 160 | 150 | 5 | 100 | 300 | 5 | 10 | 0.5 | 50 | 5 | 100 | 2L |
| MMBT5551 | NPN | 300 | 600 | 180 | 160 | 6 | 100 | 300 | 5 | 10 | 0.5 | 50 | 5 | 80 | G1 |
| MMBT5550 | NPN | 225 | 600 | 160 | 140 | 6 | 60 | 250 | 5 | 10 | 5 | 10 | 1 | M1F | |
| MMBT2222A | NPN | 300 | 600 | 75 | 40 | 6 | 100 | 300 | 10 | 150 | 0.6 | 500 | 50 | 300 | 1P |
| MMBT2907A | PNP | 300 | 600 | 60 | 60 | 5 | 100 | 300 | 10 | 150 | 0.6 | 500 | 50 | 200 | 2F |
| MMBT9012 | NPN | 200 | -500 | -40 | -30 | -5 | 100 | 250 | -1 | -50 | -0.6 | -500 | -50 | 2T1 | |
| MMBT9014 | PNP | 200 | 100 | 50 | 45 | 5 | 110 | 220 | 5 | 1 | 0.6 | 100 | 5 | J6 | |
| MMBTH10 | NPN | 225 | 50 | 30 | 25 | 3 | 60 | 10 | 4 | 4 | 0.5 | 4 | 0.4 | 650 | 3EM |
| MMBTA06 | NPN | 300 | 500 | 80 | 80 | 4 | 100 | 400 | 1 | 10 | 0.25 | 100 | 10 | 100 | 1GM |
| MMBTA13 | PNP | 350 | 300 | 30 | 30 | 10 | 10000 | 5 | 100 | 1.5 | 100 | 100 | K2D | ||
| MMBTA14 | PNP | 350 | 300 | 30 | 30 | 10 | 20000 | 5 | 100 | 1.5 | 100 | 100 | K3D | ||
| MMBTA44 | NPN | 350 | 200 | 400 | 400 | 6 | 80 | 300 | 10 | 10 | 0.3 | 50 | 5 | 3D | |
| MMBTA55 | NPN | 225 | -500 | -60 | -40 | -4 | 100 | -1 | -10 | -0.25 | -100 | -10 | 50 | 2H | |
| MMBTA56 | PNP | 225 | -500 | -80 | -80 | -4 | 100 | -1 | -100 | -0.25 | -100 | -10 | 50 | 2GM | |
| MMBTA94 | PNP | 350 | -200 | -400 | -400 | -5 | 80 | 300 | -10 | -10 | -0.3 | -50 | -5 | 4D | |
| 2SA1037 | PNP | 200 | -150 | -60 | -50 | -5 | 120 | 560 | -6 | -1 | -0.5 | -50 | -5 | 140 | FQ/FR/FS |
| 2SA1179 | PNP | 200 | -150 | -55 | -50 | 5 | 200 | 400 | -6 | -1 | -1 | -50 | -5 | 180 | M |
| 2SA1235 | PNP | 200 | -200 | -50 | -50 | -6 | 150 | 800 | -6 | -1 | -0.3 | -100 | -10 | 200 | ME/MF/MG |
| 2SA812 | PNP | 200 | -100 | -60 | -50 | -5 | 90 | 600 | -6 | -1 | 0.3 | -100 | -10 | 180 | M4/M5M6/M7 |
| 2SB709A | PNP | 200 | -100 | -45 | -45 | -7 | 160 | 460 | -1.0 | -2 | -0.5 | -100 | -10 | BQ1/BR1/BS1 | |
| 2SC1623 | NPN | 200 | 100 | 60 | 50 | 5 | 90 | 600 | 6 | 1 | 0.3 | 100 | 10 | 250 | L4/L5/L6/L7 |
| 2SC1815 | NPN | 200 | 100 | 60 | 50 | 5 | 130 | 400 | 6 | 2 | 0.25 | 100 | 10 | HF | |
| 2SC2412 | NPN | 200 | 150 | 60 | 50 | 7 | 120 | 560 | 6 | 1 | 0.4 | 50 | 5 | BQ/BR/BE | |
| 2SC2712 | NPN | 150 | 150 | 60 | 50 | 5 | 70 | 700 | 6 | 2 | 0.25 | 100 | 10 | LO/LY/LG/LL | |
| 2SC3052 | NPN | 150 | 100 | 50 | 50 | 6 | 150 | 800 | 6 | 1 | 0.3 | 100 | 10 | LE/LF/LG | |
| 2SC5344 | 200 | 800 | 35 | 30 | 5 | 100 | 320 | 1 | 100 | 0.5 | 500 | 50 | FAO/FAY | ||
| 2SD596 | NPN | 200 | 700 | 30 | 25 | 5 | 110 | 400 | 1 | 100 | 0.6 | 700 | 70 | DV1/DV2/DV3/DV4/DV5 | |
| BC807-16 | PNP | 310 | 500 | 45 | 5 | 100 | 250 | 1 | 100 | 0.7 | 500 | 50 | 5A | ||
| BC808-40 | PNP | 300 | -800 | -30 | -25 | -5 | 100 | 630 | -100 | -1 | -0.7 | -500 | -50 | 5G | |
| BC817-25 | NPN | 300 | 500 | 50 | 45 | 5 | 100 | 630 | 1 | 100 | 0.7 | 500 | 50 | 6B | |
| BC846B | NPN | 200 | 100 | 80 | 65 | 6 | 200 | 450 | 5 | 2 | 0.5 | 100 | 5 | 1B | |
| BC847A | NPN | 200 | 100 | 50 | 45 | 6 | 110 | 220 | 5 | 2 | 0.5 | 100 | 5 | 1E | |
| BC847B | NPN | 200 | 100 | 50 | 45 | 6 | 200 | 450 | 5 | 2 | 0.5 | 100 | 5 | 1F | |
| BC847C | NPN | 200 | 100 | 50 | 45 | 6 | 420 | 800 | 5 | 2 | 0.5 | 100 | 5 | 1G | |
| BC848A | NPN | 200 | 100 | 30 | 30 | 6 | 110 | 220 | 5 | 2 | 0.5 | 100 | 5 | 1J | |
| BC848B | NPN | 200 | 100 | 30 | 30 | 6 | 200 | 450 | 5 | 2 | 0.5 | 100 | 5 | 1K | |
| BC848C | NPN | 200 | 100 | 30 | 30 | 6 | 420 | 800 | 5 | 2 | 0.5 | 100 | 5 | 1L | |
| BC856A | PNP | 200 | -100 | -80 | -65 | -5 | 120 | 250 | -5 | -2 | -0.5 | -100 | -5 | 3A | |
| BC856B | PNP | 200 | -100 | -80 | -65 | -5 | 220 | 475 | -5 | -2 | -0.5 | -100 | -5 | 3B | |
| BC856C | PNP | 200 | -100 | -80 | -65 | -5 | 420 | 800 | -5 | -2 | -0.5 | -100 | -5 | 3C | |
| BC857A | PNP | 200 | -100 | -80 | -65 | -5 | 120 | 250 | -5 | -2 | -0.5 | -100 | -5 | 3E | |
| BC857B | PNP | 200 | -100 | -80 | -65 | -5 | 220 | 475 | -5 | -2 | -0.5 | -100 | -5 | 3F | |
| BC857C | PNP | 200 | -100 | -80 | -65 | -5 | 420 | 800 | -5 | -2 | -0.5 | -100 | -5 | 3G | |
| BC858A | PNP | 200 | -100 | -80 | -65 | -5 | 120 | 250 | -5 | -2 | -0.5 | -100 | -5 | 3J | |
| BC858B | PNP | 200 | -100 | -80 | -65 | -5 | 220 | 475 | -5 | -2 | -0.5 | -100 | -5 | 3K | |
| BC858C | PNP | 200 | -100 | -80 | -65 | -5 | 420 | 800 | -5 | -2 | -0.5 | -100 | -5 | 3L | |
| BCW30 | PNP | 250 | -100 | -32 | -32 | -5 | 215 | 500 | -2 | -5 | -50 | -2.5 | C2 | ||
| BCW60C | NPN | 350 | 100 | 32 | 32 | 5 | 250 | 460 | 5 | 2 | 0.55 | 50 | 1.25 | AC | |
| BCW61C | PNP | 350 | -100 | -32 | -32 | -5 | 250 | 460 | -2 | -5 | -0.25 | -10 | -0.25 | BC | |
| BCW66H | NPN | 200 | 800 | 75 | 45 | 5 | 250 | 630 | 1 | 100 | 0.3 | 100 | 10 | EH | |
| BCW68 | PNP | 330 | -800 | -60 | -45 | -5 | 100 | 250 | -1 | -100 | -1.25 | -100 | -10 | 200 | DF/DG/DH |
| KTC3265 | NPN | 200 | 160 | 30 | 25 | 5 | 100 | 320 | 1 | 100 | 0.4 | 500 | 20 | 120 | EO/EY |
| KTC3875 | NPN | 150 | 150 | 60 | 50 | 5 | 70 | 700 | 6 | 2 | 0.25 | 100 | 10 | ALO/ALY/ALG/ALL | |
| KTC3880S | NPN | 150 | 20 | 40 | 30 | 4 | 40 | 200 | 6 | 1 | 550 | ||||
| BCX70J | NPN | 150 | 150 | 60 | 50 | 5 | 250 | 460 | 2 | 5 | 350 | 10 | 0.25 | 250 | AJ |
| KTA1505 | PNP | 150 | -500 | -35 | -30 | -5 | 70 | 400 | -1 | -100 | -1.2 | -100 | -10 | 200 | AZO/ZAY/ZAG |
| KTA1298 | PNP | 200 | -800 | -35 | -30 | -5 | 100 | 320 | -1 | -100 | -0.4 | -500 | -20 | 120 | KIO/KIY |
| BFS20 | NPN | 250 | 25 | 30 | 20 | 4 | 40 | 7 | 10 | 450 | G1 | ||||
| FMMT458 | NPN | 500 | 225 | 400 | 400 | 5 | 100 | 300 | 50 | 10 | 0.9 | 50 | 10 | 458 | |
| FMMT491 | NPN | 500 | 225 | 400 | 400 | 5 | 100 | 300 | 50 | 10 | 0.9 | 50 | 10 | 458 | |
| FMMT591 | NPN | 500 | 225 | 400 | 400 | 5 | 100 | 300 | 50 | 10 | 0.9 | 50 | 10 | 458 | |
| FMMT4124 | NPN | 500 | 225 | 400 | 400 | 5 | 100 | 300 | 50 | 10 | 0.9 | 50 | 10 | 458 | |
| M28S | 200 | 1000 | 40 | 20 | 6 | 300 | 1000 | 1 | 0.1 | 0.55 | 600 | 20 | 9 | 28S | |
| KSA1182 | 150 | -500 | -35 | -30 | -5 | 70 | 240 | -1 | -100 | -0.25 | -100 | -10 | 200 | FIY | |
