| 最高反向峰值電壓 | 最大平均整流電流 | 最大峰值浪涌電流 | 最大反向漏電流 | 正向壓降 | 最大反向恢復時間 | 封裝形式 | |||
| 直插 | Maximum Peak Reverse Voltage | Maximum Average Rectified Current @Half-Wave Resistive Load 60Hz | Maximum Forward Peak Surge Current @8.3ms Superimposed | Maximum Reverse Current @PRV @25CTa | Maximum Forward Voltage @25CTa | Maximum Reverse Recovery Time | 直插 | ||
| PRV | Io@TA | IFM(Surge) | IR | IFM | VFM | Trr | |||
| Vpk | Aav | ℃ | Apk | UAds | Apk | Vpk | ns | ||
| 1.0AMPER/1.0A 整流二極管 | |||||||||
1N4001 | 50 | 1.O | 75 | 30 | 5.O | 1.O | 1.O | ┅ | DO-41 |
| 1N4002 | 100 | 1.O | 75 | 30 | 5.O | 1.O | 1.O | ┅ | DO-41 |
| 1N4003 | 200 | 1.O | 75 | 30 | 5.O | 1.O | 1.O | ┅ | DO-41 |
| 1N4004 | 400 | 1.O | 75 | 30 | 5.O | 1.O | 1.O | ┅ | DO-41 |
| 1N4005 | 600 | 1.O | 75 | 30 | 5.O | 1.O | 1.O | ┅ | DO-41 |

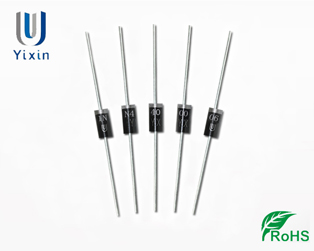

| 1N4006 | 800 | 1.O | 75 | 30 | 5.O | 1.O | 1.O | ┅ | DO-41 |
| 1N4007 | 1000 | 1.O | 75 | 30 | 5.O | 1.O | 1.O | ┅ | DO-41 |
| 1.5AMPERES/1.5A 整流二極管 | |||||||||
| 1N5391 | 50 | 1.5 | 50 | 50 | 5.O | 1.5 | 1.O | ┅ | DO-15 |
| 1N5392 | 100 | 1.5 | 50 | 50 | 5.O | 1.5 | 1.O | ┅ | DO-15 |
| 1N5393 | 200 | 1.5 | 50 | 50 | 5.O | 1.5 | 1.O | ┅ | DO-15 |
| 1N5395 | 400 | 1.5 | 50 | 50 | 5.O | 1.5 | 1.O | ┅ | DO-15 |
| 1N5396 | 500 | 1.5 | 50 | 50 | 5.O | 1.5 | 1.O | ┅ | DO-15 |
| 1N5397 | 600 | 1.5 | 50 | 50 | 5.O | 1.5 | 1.O | ┅ | DO-15 |
| 1N5398 | 800 | 1.5 | 50 | 50 | 5.O | 1.5 | 1.O | ┅ | DO-15 |
| 1N5399 | 1000 | 1.5 | 50 | 50 | 5.O | 1.5 | 1.O | ┅ | DO-15 |
| 2.0AMPERES/2.0A 整流二極管 | |||||||||
| RL201 | 50 | 2.O | 50 | 70 | 5.O | 2.O | 1.O | ┅ | DO-15 |
| RL202 | 100 | 2.O | 50 | 70 | 5.O | 2.O | 1.O | ┅ | DO-15 |
| RL203 | 200 | 2.O | 50 | 70 | 5.O | 2.O | 1.O | ┅ | DO-15 |
| RL204 | 400 | 2.O | 50 | 70 | 5.O | 2.O | 1.O | ┅ | DO-15 |

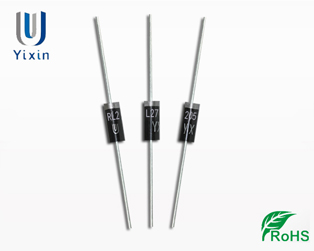

| RL205 | 600 | 2.O | 50 | 70 | 5.O | 2.O | 1.O | ┅ | DO-15 |
| RL206 | 800 | 2.O | 50 | 70 | 5.O | 2.O | 1.O | ┅ | DO-15 |
| RL207 | 1000 | 2.O | 50 | 70 | 5.O | 2.O | 1.O | ┅ | DO-15 |
| 3.0AMPERES/3.0A 整流二極管 | |||||||||
| 1N5400 | 50 | 3.O | 75 | 200 | 5.O | 3.O | 1.O | ┅ | DO-27 |
| 1N5401 | 100 | 3.O | 75 | 200 | 5.O | 3.O | 1.O | ┅ | DO-27 |
| 1N5402 | 200 | 3.O | 75 | 200 | 5.O | 3.O | 1.O | ┅ | DO-27 |
| 1N5404 | 400 | 3.O | 75 | 200 | 5.O | 3.O | 1.O | ┅ | DO-27 |
| 1N5406 | 600 | 3.O | 75 | 200 | 5.O | 3.O | 1.O | ┅ | DO-27 |
| 1N5407 | 800 | 3.O | 75 | 200 | 5.O | 3.O | 1.O | ┅ | DO-27 |
| 1N5408 | 1000 | 3.O | 75 | 200 | 5.O | 3.O | 1.O | ┅ | DO-27 |
| 6.0AMPER/6.0A 整流二極管 | |||||||||
| 6A1 | 100 | 6.O | 75 | 400 | 10.O | 6.O | 0.95 | ┅ | R-6 |
| 6A2 | 200 | 6.O | 75 | 400 | 10.O | 6.O | 0.95 | ┅ | R-6 |
| 6A4 | 400 | 6.O | 75 | 400 | 10.O | 6.O | 0.95 | ┅ | R-6 |
| 6A6 | 600 | 6.O | 75 | 400 | 10.O | 6.O | 0.95 | ┅ | R-6 |
| 6A8 | 800 | 6.O | 75 | 400 | 10.O | 6.O | 0.95 | ┅ | R-6 |
| 6A10 | 1000 | 6.O | 75 | 400 | 10.O | 6.O | 0.95 | ┅ | R-6 |
| 10.0APER/10.0A 整流二極管 | |||||||||
| 10A1 | 100 | 10.O | 75 | 400 | 10.O | 10.O | 0.95 | ┅ | R-6 |
| 10A2 | 200 | 10.O | 75 | 400 | 10.O | 10.O | 0.95 | ┅ | R-6 |
| 10A4 | 400 | 10.O | 75 | 400 | 10.O | 10.O | 0.95 | ┅ | R-6 |
| 10A6 | 600 | 10.O | 75 | 400 | 10.O | 10.O | 0.95 | ┅ | R-6 |
| 10A8 | 800 | 10.O | 75 | 400 | 10.O | 10.O | 0.95 | ┅ | R-6 |

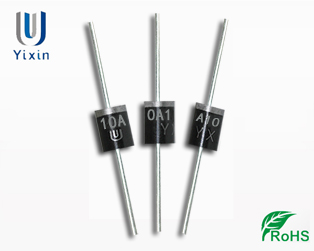

| 10A10 | 1000 | 10.O | 75 | 400 | 10.O | 10.O | 0.95 | ┅ | R-6 |
| DMV1500LFD | 1500 | 4 | 75 | 50 | 50 | 3 | 1.5 | 150 | TO-220FPAB |
| DMV1500MFD5 | 1500 | 6 | 75 | 75 | 50 | 2.2 | 1.8 | 150 | TO-220FPAB |
| DMV1500SDFD | 1500 | 6 | 75 | 50 | 30 | 6 | 1.5 | 150 | TO-220FPAB |
| BYW51F200 | 200 | 20 | 150 | 20 | 15 | 8 | 0.85 | 15 | TO-220FPAB |
| BYW51FP200 | 200 | 20 | 150 | 20 | 20 | 8 | 0.85 | 25 | TO-220FPAB |
| FERD20H100SFP | 100 | 20 | 175 | 40 | 20 | 2 | 0.415 | ┅ | TO-220FPAB |
