| 最高反向峰值電壓 | 最大平均整流電流 | 最大峰值浪涌電流 | 最大反向漏電流 | 正向壓降 | 最大反向恢復時間 | 封裝形式 | |||
| 貼片 | Maximum Peak Reverse Voltage | Maximum Average Rectified Current @Half-Wave Resistive Load 60Hz | Maximum Forward Peak Surge Current @8.3ms Superimposed | Maximum Reverse Current @PRV @25CTa | Maximum Forward Voltage @25CTa | Maximum Reverse Recovery Time | 貼片 | ||
| PRV | Io@TA | IFM(Surge) | IR | IFM | VFM | Trr | |||
| Vpk | Aav | ℃ | Apk | UAds | Apk | Vpk | ns | ||
| 1.0AMPERE SCHOTTKY 肖特基二極管 | |||||||||
SS12 | 20 | 1.O | 90 | 25 | 0.5 | 1.O | 0.45 | ┅ | SMA |
| SS14 | 40 | 1.O | 90 | 25 | 0.5 | 1.O | 0.60 | ┅ | SMA |
| SS16 | 60 | 1.O | 100 | 40 | 0.5 | 1.O | 0.70 | ┅ | SMA |
| SS18 | 80 | 1.O | 100 | 40 | 0.5 | 1.O | 0.85 | ┅ | SMA |
| SS110 | 100 | 1.O | 100 | 40 | 0.5 | 1.O | 0.85 | ┅ | SMA |
| 肖特基二極管SMAF系列 | |||||||||
| 20 | 1.O | 90 | 40 | 0.3 | 1.O | 0.55 | ┅ | SMAF | |
| 40 | 1.O | 90 | 40 | 0.3 | 1.O | 0.55 | ┅ | SMAF | |
| 60 | 1.O | 100 | 40 | 0.3 | 1.O | 0.70 | ┅ | SMAF | |
| 80 | 1.O | 100 | 40 | 0.3 | 1.O | 0.70 | ┅ | SMAF | |
| 100 | 1.O | 100 | 40 | 0.2 | 1.O | 0.85 | ┅ | SMAF | |
| 肖特基二極管SK系列 | |||||||||
| SK12 | 20 | 1.O | 90 | 25 | 0.5 | 1.O | 0.45 | ┅ | SMA/SMB |
| SK14 | 40 | 1.O | 90 | 25 | 0.5 | 1.O | 0.60 | ┅ | SMA/SMB |
| SK16 | 60 | 1.O | 100 | 40 | 0.5 | 1.O | 0.70 | ┅ | SMA/SMB |
| SK18 | 80 | 1.O | 100 | 40 | 0.5 | 1.O | 0.85 | ┅ | SMA/SMB |
| SK110 | 100 | 1.O | 100 | 40 | 0.5 | 1.O | 0.85 | ┅ | SMA/SMB |
| 2.0AMPERE SCHOTTKY 肖特基二極管 | |||||||||
| SS22 | 20 | 2.O | 75 | 40 | 0.5 | 2.O | 0.55 | ┅ | SMA/SMB |
| SS24 | 40 | 2.O | 75 | 40 | 0.5 | 2.O | 0.55 | ┅ | SMA/SMB |
| SS26 | 60 | 2.O | 100 | 40 | 0.5 | 2.O | 0.75 | ┅ | SMA/SMB |
| SS28 | 80 | 2.0 | 100 | 40 | 0.5 | 2.0 | 0.85 | ┅ | SMA/SMB |
| SS210 | 100 | 2.O | 100 | 40 | 0.5 | 2.O | 0.85 | ┅ | SMA/SMB |
| SS220 | 200 | 2.O | 100 | 40 | 0.5 | 2.O | 0.95 | ┅ | SMA/SMB |
| 肖特基二極管SK系列 | |||||||||
| SK22 | 20 | 2.O | 75 | 40 | 0.5 | 2.O | 0.55 | ┅ | SMA |
| SK24 | 40 | 2.O | 75 | 40 | 0.5 | 2.O | 0.55 | ┅ | SMA |
| SK26 | 60 | 2.O | 100 | 40 | 0.5 | 2.O | 0.75 | ┅ | SMA |
| SK210 | 100 | 2.O | 100 | 40 | 0.5 | 2.O | 0.85 | ┅ | SMA |
| SK220 | 200 | 2.O | 100 | 40 | 0.5 | 2.O | 0.95 | ┅ | SMA |
| 肖特基二極管SMAF系列 | |||||||||
| SS22F | 20 | 2.O | 75 | 50 | 0.5 | 2.O | 0.55 | ┅ | SMAF |
| SS24F | 40 | 2.O | 75 | 50 | 0.5 | 2.O | 0.55 | ┅ | SMAF |
| SS26F | 60 | 2.O | 100 | 50 | 0.5 | 2.O | 0.70 | ┅ | SMAF |
| SS28F | 80 | 2.0 | 100 | 50 | 0.5 | 2.0 | 0.85 | ┅ | SMAF |
| SS210F | 100 | 2.O | 100 | 40 | 0.3 | 2.O | 0.85 | ┅ | SMAF |
| SS220F | 200 | 2.O | 100 | 40 | 0.3 | 2.O | 0.95 | ┅ | SMAF |
| 3.0AMPERE SCHOTTKY 肖特基二極管 | |||||||||
| SS32 | 20 | 3.O | 75 | 80 | 0.5 | 3.O | 0.55 | ┅ | SMA/SMB/SMC |
| SS34 | 40 | 3.O | 75 | 80 | 0.5 | 3.O | 0.55 | ┅ | SMA/SMB/SMC |
| SS36 | 60 | 3.O | 100 | 80 | 0.5 | 3.O | 0.75 | ┅ | SMA/SMB/SMC |
| SS38 | 80 | 3.0 | 100 | 80 | 0.5 | 3.0 | 0.75 | ┅ | SMA/SMB/SMC |
| SS310 | 100 | 3.O | 100 | 80 | 0.5 | 3.O | 0.85 | ┅ | SMA/SMB/SMC |
| SS320 | 200 | 3.O | 100 | 80 | 0.5 | 3.O | 0.95 | ┅ | SMB/SMC |
| 肖特基二極管SMAF系列
| |||||||||
| SS32F | 20 | 3.O | 75 | 80 | 0.5 | 3.O | 0.55 | ┅ | SMAF |
| SS34F | 40 | 3.O | 75 | 80 | 0.5 | 3.O | 0.55 | ┅ | SMAF |
| SS36F | 60 | 3.O | 100 | 80 | 0.5 | 3.O | 0.70 | ┅ | SMAF |
| SS38F | 80 | 3.0 | 100 | 80 | 0.5 | 3.0 | 0.85 | ┅ | SMAF |
| SS310F | 100 | 3.O | 100 | 70 | 0.3 | 3.O | 0.85 | ┅ | SMAF |
| SS320F | 200 | 3.O | 100 | 70 | 0.3 | 3.O | 0.95 | ┅ | SMAF |
| 肖特基二極管SK系列 | |||||||||
| SK32 | 20 | 3.O | 75 | 80 | 0.5 | 3.O | 0.55 | ┅ | SMA/SMB/SMC |
| SK34 | 40 | 3.O | 75 | 80 | 0.5 | 3.O | 0.55 | ┅ | SMA/SMB/SMC |

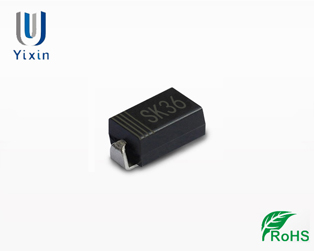

| SK36 | 60 | 3.O | 100 | 80 | 0.5 | 3.O | 0.75 | ┅ | SMA/SMB/SMC |
| SK310 | 100 | 3.O | 100 | 70 | 0.3 | 3.O | 0.85 | ┅ | SMA/SMB/SMC |
| SK320 | 200 | 3.O | 100 | 70 | 0.3 | 3.O | 0.95 | ┅ | SMA/SMB/SMC |
| 5.0AMPERE SCHOTTKY 肖特基二極管 | |||||||||
| SS52 | 20 | 5.O | 60 | 150 | 0.5 | 5.O | 0.57 | ┅ | SMA/SMB/SMC |
| SS54 | 40 | 5.O | 60 | 150 | 0.5 | 5.O | 0.57 | ┅ | SMA/SMB/SMC |
| SS56 | 60 | 5.O | 85 | 150 | 0.5 | 5.O | 0.70 | ┅ | SMA/SMB/SMC |
| SS58 | 80 | 5.0 | 85 | 150 | 0.5 | 5.0 | 0.85 | ┅ | SMA/SMB/SMC |
| SS510 | 100 | 5.O | 85 | 150 | 0.5 | 5.O | 0.85 | ┅ | SMA/SMB/SMC |
| SS515 | 150 | 5.O | 85 | 150 | 0.5 | 5.O | 0.85 | ┅ | SMA/SMB/SMC |
| SS520 | 200 | 5.O | 85 | 150 | 0.5 | 5.O | 0.95 | ┅ | SMA/SMB/SMC |
| 肖特基二極管SMAF系列 | |||||||||
| SS52F | 20 | 5.O | 60 | 150 | 0.5 | 5.O | 0.55 | ┅ | SMAF |
| SS54F | 40 | 5.O | 60 | 150 | 0.5 | 5.O | 0.55 | ┅ | SMAF |
| SS56F | 60 | 5.O | 85 | 150 | 0.5 | 5.O | 0.70 | ┅ | SMAF |
| SS58F | 80 | 5.0 | 85 | 150 | 0.5 | 5.0 | 0.85 | ┅ | SMAF |
| SS510F | 100 | 5.O | 85 | 150 | 0.5 | 5.O | 0.85 | ┅ | SMAF |
| SS515F | 150 | 5.O | 85 | 150 | 0.5 | 5.O | 0.85 | ┅ | SMAF |
| SS520F | 200 | 5.O | 85 | 150 | 0.5 | 5.O | 0.95 | ┅ | SMAF |
| 肖特基二極管SK系列 | |||||||||

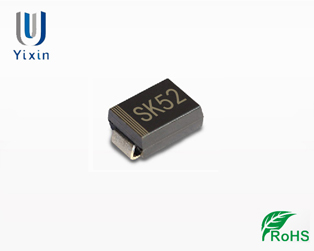

| SK52 | 20 | 5.O | 60 | 150 | 5.O | 5.O | 0.55 | ┅ | SMB/SMC |
| SK54 | 40 | 5.O | 60 | 150 | 5.O | 5.O | 0.55 | ┅ | SMB/SMC |
| SK56 | 60 | 5.O | 85 | 150 | 5.O | 5.O | 0.70 | ┅ | SMB/SMC |
| SK58 | 80 | 5.0 | 85 | 150 | 5.0 | 5.0 | 0.85 | ┅ | SMB/SMC |
| SK510 | 100 | 5.O | 85 | 150 | 5.O | 5.O | 0.85 | ┅ | SMB/SMC |
| SK515 | 150 | 5.O | 85 | 150 | 5.O | 5.O | 0.85 | ┅ | SMB/SMC |
| SK520 | 200 | 5.O | 85 | 150 | 5.O | 5.O | 0.95 | ┅ | SMB/SMC |
| 超低壓降肖特基二極管 | |||||||||
| SS14L | 40 | 1.O | 90 | 40 | 1.0 | 1.O | 0.45 | ┅ | SMAF |
| SS24L | 40 | 2.O | 75 | 40 | 2.0 | 2.O | 0.45 | ┅ | SMAF |
| SS26L | 60 | 2.O | 100 | 40 | 2.0 | 2.O | 0.53 | ┅ | SMAF |
| SS210L | 100 | 2.0 | 100 | 40 | 2.0 | 2.O | 0.6 | ┅ | SMAF |
| SS34L | 40 | 3.O | 75 | 80 | 3.0 | 3.O | 0.38 | ┅ | SMAF |
| SS36L | 60 | 3.O | 100 | 80 | 3.0 | 3.O | 0.53 | ┅ | SMAF |
| SS310L | 100 | 3.O | 100 | 80 | 3.0 | 3.O | 0.6 | ┅ | SMAF |
| SS54L | 40 | 5.O | 75 | 150 | 5.0 | 5.O | 0.38 | ┅ | SMAF |
| SS56L | 60 | 5.O | 75 | 150 | 5.0 | 5.O | 0.53 | ┅ | SMAF |
| SS510L | 100 | 5.O | 100 | 150 | 5.0 | 5.O | 0.6 | ┅ | SMAF |
| SB1045L | 45 | 10.O | 75 | 150 | 5.0 | 10.O | 0.38 | ┅ | T0-277 |
| 肖特基二極管 | |||||||||
| BYW4200B-TR | 200 | 4 | 150 | 70 | 10 | 4 | 0.85 | 35 | TO-252 |
| MJD112T4 | 100 | 2 | 150 | 4 | 10 | TO-252 | |||
| MJD122DTT4 | |||||||||
| MJD32CT4-A | -100 | -3 | 150 | -5 | -20 | TO-252 | |||
| MJD44H11T4 | 8 | 8 | 150 | 16 | 10 | TO-252 | |||
| MJD47T4 | 250 | 1 | 150 | 2 | TO-252 | ||||
| STP640CB-TR | |||||||||
| STPR1020CB-TR | 200 | 10 | 150 | 70 | 20 | 10 | 1.25 | 35 | TO-252 |
| STPS10170CB-TR | 170 | 10 | 175 | 75 | 10 | 10 | 1 | TO-252 | |
| STPS1045B-TR | 45 | 10 | 150 | 75 | 100 | 10 | 0.63 | TO-252 | |
| STPS1045BY-TR | 45 | 10 | 175 | 75 | 100 | 10 | 0.63 | TO-252 | |
| STPS15H100CB-TR | 100 | 15 | 175 | 75 | 7.5 | 0.8 | TO-252 | ||
| STPS15L30CB-TR | 30 | 10 | 150 | 75 | 7.5 | 0.48 | TO-252 | ||
| STPS15L45CB-TR | 45 | 15 | 150 | 75 | 7.5 | 0.52 | TO-252 | ||
| STPS15L60CB | 60 | 15 | 150 | 75 | 200 | 7.5 | 0.62 | TO-252 | |
| STPS20LCD170CB | TO-252 | ||||||||
| STPS2H100B-TR | TO-252 | ||||||||
| STPS5H100B-TR | 100 | 5 | 175 | 75 | 3.5 | 5 | 0.73 | TO-252 | |
| STPS5L25B-TR | 25 | 5 | 150 | 75 | 350 | 5 | 0.47 | TO-252 | |
| STPS5L30B-TR | TO-252 | ||||||||
| STPS660CB-TR | 60 | 6 | 125 | 50 | 30 | 3 | 0.65 | TO-252 | |
| STPS8L30B-TR | 30 | 8 | 150 | 75 | 8 | 0.49 | TO-252 | ||
| STPS16170CB-TR | 170 | 16 | 175 | 75 | 15 | 8 | 0.92 | TO-252 | |
| STPSC10H065B-TR | 650 | 10 | 175 | 90 | 100 | 10 | 1.75 | TO-252 | |
| STPSC406B-TR | 600 | 4 | 175 | 14 | 50 | 4 | 1.9 | TO-252 | |
| STTA306B-TR | 600 | 3 | 125 | 20 | 20 | 3 | 1.85 | 50 | TO-252 |
| RHRD4120S | 1200 | 4 | 175 | 40 | 100 | 4 | 3.2 | 60 | TO-252 |
| RHRD6120 | 1200 | 6 | 175 | 60 | 100 | 6 | 3.2 | 65 | TO-252 |
| RHRD660S9A | 600 | 6 | 175 | 60 | 100 | 6 | 2.1 | 30 | TO-252 |
